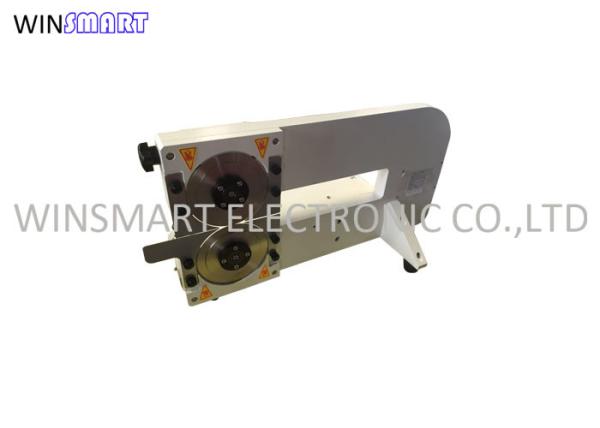

Pizza Cutter PCB Depanelizer 300mm Cutting Length PCB Cutting Machine

Technical Specification:

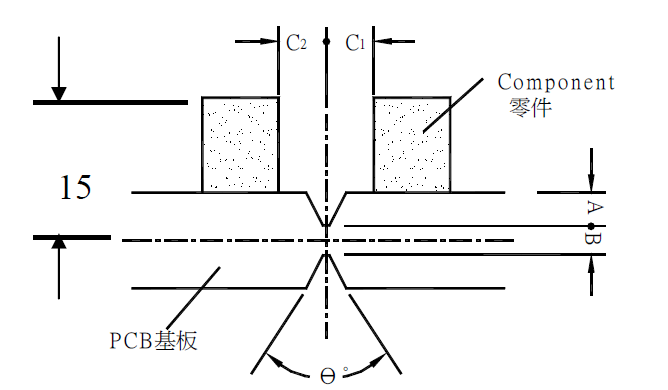

	A : > 0.25mm B: 1.0mm(Max) Standard cutter : C2: ≧2mm C1: ≧0.3mm Θ: ≧200
Max.Cutting length (mm)	15-300mm
Cutting thickness (mm)	0.8~2.0
Cutting Speed (mm/s)	0~400
Voltage (VAC)	220
Machine Weight (KG)	42

Features:

1. Minimize the shearing stress to avoid micro-cracks of the solder joints.

2. Guiding device of the “V-CUT” can easy setting the edge of PCB and the height of the tabletop to fit for difference kinds of thickness of PCB.

3. Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.

4. Cutters can be re-grinded.

5. The shape of the cutter can be customer made.

Installation:

Placing the machine on the table which should be flat and stable.

The parallelism of the machine can be adjusted by the foot on a small scale

Power connection:

Connect the power plug to the 220VAC 50HZ / 110VAC 60HZ power supply.

Turn on the power switch and lower blade start to turn, then the machine can work.

Factory established in 2005, has built and maintained its reputation as a source of technical

and professional excellence.

Winsmart has a driven, experienced, and knowledgeable team, providing extensive array of solutions

for PCB depaneling and soldering. Above all, it takes pride in the quality and efficient service that it

provides to customers, which is reflected by long-standing relationships across a diverse customer base.

Winsmart will continue to meet customers' requirements by supplying the excellent solution with

unique technology and service!
