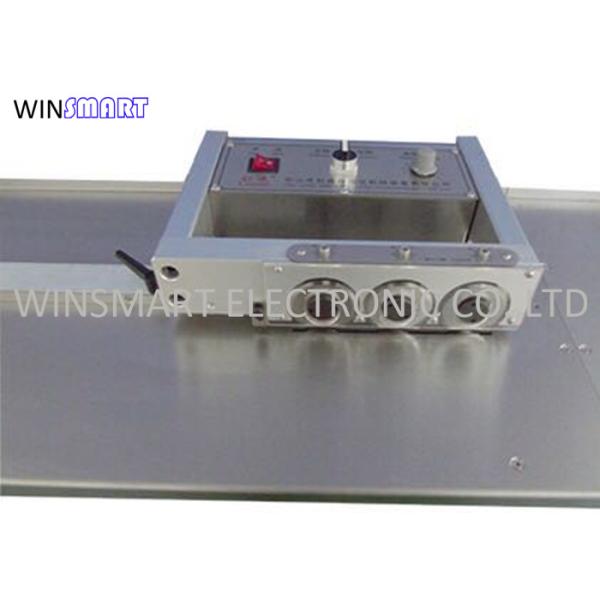

Multi Blade LED PCB Separator for FR4 / Aluminum 1200mm LED Strip
Machine Details:
1. Coutrolled by microcomputer program, it can cut board accurately
with no error.
2. This machine applies unique multi sections cutting, the cutting
is to be finished by 6 pieces round blade.
3. Precise adjustment of up and down blade.Adjustable blade moving
speed : 200mm/s. As per customers' need, certain speed can be set
4. Operation platform can be adjustable higher and lower between 0
and 50mm
5. Working process is pretty smooth, due multi sections cutting.
6. There won`t be any deviation when cutting along the v-cut slot,
even the v-cut slot is shallow.
7. Pre-set the cutting start and end point to well control the
cutting length
Technical Specification:

| A : > 0.25mm B: 1.0mm(Max) Standard cutter : C2: ≧2mm C1: ≧2mm Θ: ≧200 Cutters can be Customer made
|
| Max cutting length(mm) | unlimited |
| Speed(mm/sec) | adjustable |
| Power Supply(VAC) | 220/110 |
| Weight(Kg) | 48 |
| Component Height(mm) | ≤8 |
| Power | AC 220V/50HZ |
| Cutting thickness | 0.5-3.0mm |
Machine Features:
1. Minimize internal cutting stress to avoid tin crack phenomenon.
2. Improve the lower blade could solve out cutting the boards with
jump v-cut
3. Operator foolproof! Safely operate
4. Panel fully functional, flexible
5. Optional equipped with conveyor belt
6. Can solve boards with v-cut thickness lower than 1.0 mm by
cutting
7. V-groove guide equipment can vertically adjust the three upper
blades to faster and easier to suitable different thickness boards
8. The upper blade distance can be adjusted vertically
9. Circular blades can be reuse after re-grinded
Machine Installation:
1. Machine can be movable through forklift, short distance can be
hand-carried
2. Fisrt and kindly check accessories: instruction manual, pedal &
power line
3. Remove the packing tape,Placing the machine on the table which
should be flat and stable.wipe the blade rust-proof oil
4. To avoid electrostatic damage to components,machine shell should
be ground connection.
5. Machine should be placed in a smooth and stable working platform
