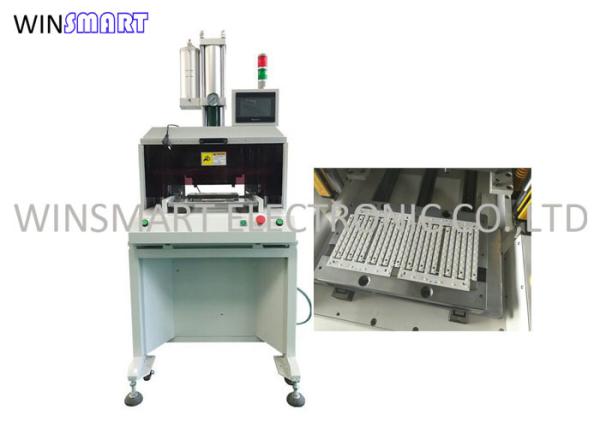

50MM Stroke CEM FR4 MCPCB LED PCB Punching Machine

LED PCB Punching Machine For High Volume Production 10 Seconds Cycle Time

Change Die Tooling Steps:

1. Loosen fixing screws for upper mold

2. Take out upper mold

3. Loosen fixing screws for lower mold

4. Take out lower mold

5. Install new lower mold by locking screws

6. Insall new upper mold by locking screws

7. Put PCB/FPC on lower mold

8. Press start buttons, lower mold slid into punching position for cutting

Description:

This punching and pressing machine, compact and firm structure, pressure cylinder output, environmental pollution free, large output, and simple operation.Adopt the latest gas-electric lightweight design, can use all kinds of knife die.Cutting various effectively Apply to cut Rigid pcb, Flexible pcb(FPC),Rigid-Flexible pcb.

Feature:

1. High efficiency: can be divided into 6 to 8 pieces per minute.

2. Replace a variety of mold, and mold changing easily.

3. The lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.

4. Make internal stress generated by PCB cutting to minimize and avoid tin stress cracking.

5. Punching cutting semi-finished PCB with high efficiency.

6. Worktable: used for the operator to take and place the products, take the blanking and cutting finished products, and place the products to be cut.

7. Safety grating: prevent operators from misoperation and place hands and other tools in the working area to protect employees.

8. Double start button: anti-dumbness and safety protection function, prevent the staff from operating by mistake and the operator of the station from touching by mistake.

9. 10T booster cylinder: pressure adjustable: 0-10T pressure adjustable, suitable for more kinds of products.

10. Mould and die can be made according to customer's request.

Specification:

Working area	400*300mm
Working pressure	0.45-0.7Mpa
Cutting precision	±0.05mm
Cycle time	7-15 seconds
Output	8T
PCB/FPC thickness	0.08-3.5MM
PCB/FPC material	FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
Cutting mode	Punching
Punch fixture	Die tooling(mold)
Working Property	LCD display, Automatically records the number of processed products, automatic punching
Transmission port	International standard
Operation Language	English
Stroke	50MM
Mold height	170MM
Power	380/220V
Fuse	3A
Machine dimension	820x740x1750mm
Machine weight	580kgs
