Adjustable SMT Magazine Storage Rack PCB Carrier For SMT Production

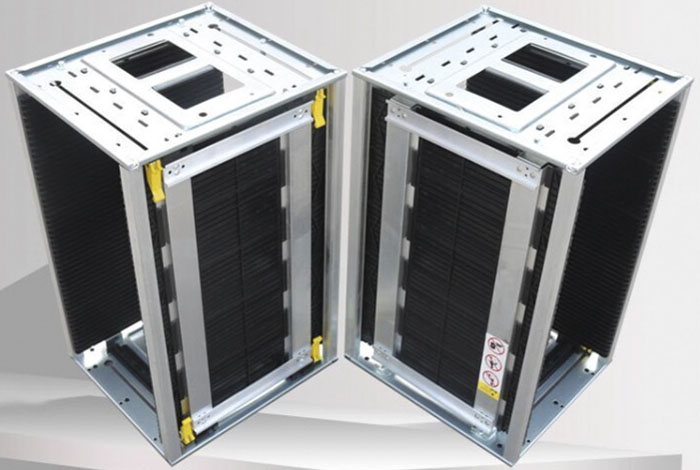

ESD PCB Magainze Rack Description:

An ESD PCB magazine rack typically consists of a sturdy frame made of conductive or static-dissipative materials to prevent the buildup and discharge of static electricity that could damage sensitive electronic components on the PCBs. The rack is designed with slots or compartments to securely hold individual PCBs in an upright position, facilitating easy access and organization during assembly and inspection processes.

ESD PCB Magainze Rack Dimensions Introduction:

1. Dimension: 355x320x563mm, storing 50pcs of 350x(50-250)MM PBC Boards

Depth 3.5mm, width 5mm, pitch 10mm

2. Dimension: 355x315x580mm, storing 50pcs of 350x(80-250)MM PBC Boards

Depth 3.5mm, width 5mm, pitch 10mm

3. Dimension: 460x400x563mm, storing 50pcs of 460x(100-330)MM PBC Boards

Depth 3.5mm, width 5mm, pitch 10mm

4. Dimension: 535x460x570mm, storing 50pcs of 535x(50-390)MM PBC Boards

Depth 3.5mm, width 5mm, pitch 10mm

5. Dimension: 535x530x570mm, storing 50pcs of 535x(50-460)MM PBC Boards

Depth 3.5mm, width 5mm, pitch 10mm

ESD PCB Magazine Rack Specification:

ESD PCB Magainze Rack Functions:

ESD PCB magazine rack provides essential ESD protection, organization, storage, and workflow efficiency benefits in electronics manufacturing environments, ensuring that sensitive PCBs remain safe and secure during assembly and handling processes. It keeps PCBs upright and securely held in place, and minimizeds the risk of accidental damage such as bending, warping or scratching the could occur if the boards were stacked haphazardly or handled improperly. They are very helpful in SMT production line.

​

ESD PCB Magazine Rack Details:

ESD PCB Magazine Rack Package:

Carton + wooden case
