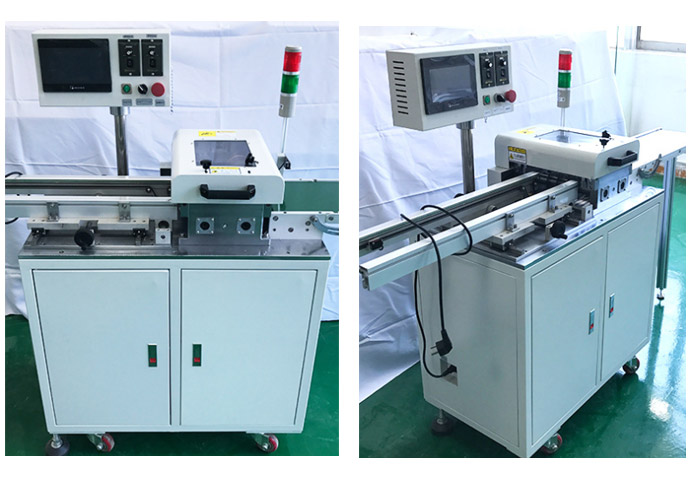

Automatic 3-13 Groups Multi-blade PCB Depanelizer for LED Strips
PCB Separation
Multi-blade PCB Depanelizer Specification:
| Max cutting length | No limit |
| Min cutting length | 100mm |
| Max panel width | 250mm |
| Custom cutting width | 300mm |
| Min PCB width | 8mm |
| PCB thickness | 0.8-3.5mm |
| Feeding speed | 0-400mm/s |
| Working tem. | 10-35℃ |
| Blade material(auto-lock function) | Imported high precision steel |
| Storge tem. | -20-50℃ |
| Voltage | 110V or 220V |
| Dimension | 1000*500*1250mm |
Multi-blade PCB Depanelizer Features:
1. It can cut many boards with multiple sets of knives at the same
time.
2. The knife flywheel is adjustable as a whole from 0-5mm.
3. The distance between knives is regulable as well, safisty to cut
the single PCB width from 15-20mm.
4. The blade is made of Japan imported high speed and high
precision steel, which is durable and have a long service life.
5. It is convenient to adjust the cutting speed through rotary
knob.
6. No limits of cutting length.
7. Thickness range of PCB:0.8-3.5mm
8. With a conveyor belt, the spearated PCB can be sent out directly
to reduce pick-and place time.
9. The machine adopts multiple blade to separate boards with simple
operation and high efficiency.
10. Can connect production line to separate PCBA, suitable for high
volume production.

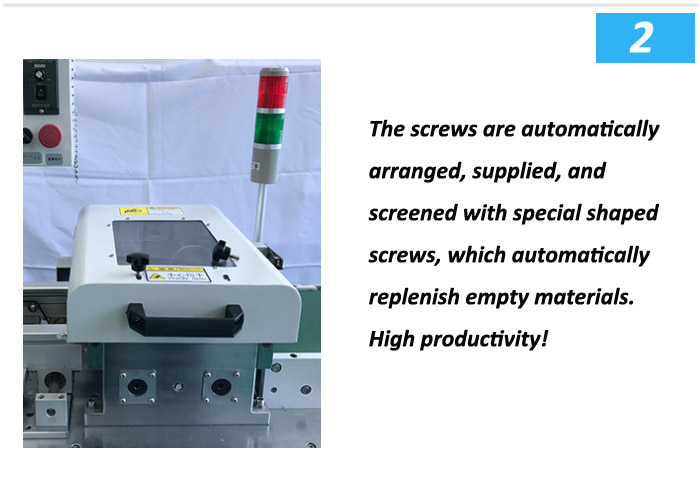

Multi-blade PCB Depanelizer Details:
PCB Punching Machine Packaging:
1. Fix the machine base on the wooden base by screws
2. Vacuum
3. Lock the wooden case
PCB Punching Machine Delivery Terms:
1. Ex-work/FOB/CIF/DDU, up to clients
2. Production leadtime: 7-15 days to customized make die tooling
and test it with the punching machine
Our Service:
1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality
problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation
and training.
5. Solid packaging to prevent damage from transportation.
