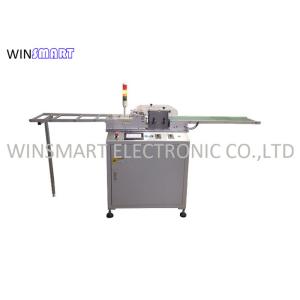

High Speed Multi-blade PCB Depaneling Machine For LED PCB Boards

Multi-blade PCB Depaneling Machine Features:

1. It can cut many boards with multiple sets of knives work at the same time.

2. The knife flywheel is adjustable as a whole from 0 to 5mm

3. The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm

4. The blade is made of Japan imported high speed and high precision steel material, which is durable and have a long service life.

5. It is convenient to adjust the cutting speed through rotary knob

6. No limits of the cutting length.

7. Thickness range of PCB: 0.8-3.5mm

8. With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.

9. The machine adopts multiple blade to separate boards with simple operation and high efficiency.

10. It can connect the production line to separate the PCB, fitted for batch production.

Multi-blade PCB Depaneling Machine Specification:

Multi-blade PCB Depaneling Machine Details:

Factory established in 2005, has built and maintained its reputation as a source of technical

and professional excellence.

Winsmart has a driven, experienced, and knowledgeable team, providing extensive array of solutions

for PCB depaneling and soldering. Above all, it takes pride in the quality and efficient service that it

provides to customers, which is reflected by long-standing relationships across a diverse customer base.

Winsmart will continue to meet customers' requirements by supplying the excellent solution with

unique technology and service!
