    0.001mm Axis Precision Pcb Cnc Router , Pcb Depanelizer machine

    Ask Lasest Price
    Brand Name : Winsmart
    Model Number : SMTR09
    Certification : CE
    Price : USD1-100000
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 Sets/Month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    0.001mm Axis Precision Pcb Cnc Router , Pcb Depanelizer machine

    PCBA CNC Routing Machine Automatic Automatic PCB Milling Machine


    PCBA CNC Routing Machine Advantages:

    X10 zoom-in image makes programming easier&increase the accuracy of point setting.

    2 sliding tables provide simultaneously in-and-out movement to reduce the tack time for better productivity.

    AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.


    PCBA CNC Routing Machine Parameters:

    Overall
    Dimensions(W*D*H)1250mm*1650mm*1450mm
    Weight750KG
    Height offset60~110mm
    Manipulator
    Motor typeJiaBao series
    Positioning repeatability0.001mm
    Axis working area(max)650mm*560mm*50mm
    Work station
    PCB fixationstandard,specialization
    PCB loading/unloadingmanual
    PCB size (max)320*320mm
    PCB thick (max)5mm
    Fixturing
    Rigidity fixturingCustomized make fixture
    Fixturing fixationmachinery
    Spindle Motor
    Power150W
    Spindle60000rpm/min
    Protectself/wind cooling
    Change cutterSpecialization
    Routing capability
    Cutting speed(max.)80mm/s
    Driving speed(max.)2500mm/s
    Precision of cutting0.01mm
    Vacuum System
    Vacuum power3.5KW AC 380V
    Vacuumplumb
    Utilities
    Power2.0KW AC380V
    Air supply4-6KG/cm2
    Programming
    Program editInline
    Function editLine,arc,circula,U-curve
    Program storageHDD
    Vision systemSONE colour CCD
    milling cutter offsetAUTO
    Vacuum setupAUTO
    Operation Monitors
    IindicatorIindicator Machine state
    tool checkAutomatic detection tool life, the use of time testing
    Motor protectHave overheating, overload, low voltage protection function
    motor over loading checkHave Overload, the line is normal, low voltage protection function
    Tool usable timeAutomatic detection tool life,
    Data statisticSeparate board model, separating count, diverse counting methods
    Error recordSoftware automatically records all alarms memory of machines
    III. Accuracy
    Axis precision0.001mm
    Cutting precision0.1mm
    IV. Safety
    Working area protectWith four sealed protection
    Door sensorFront and rear safety door micro-switch sensor (optional)
    Exigency stop button

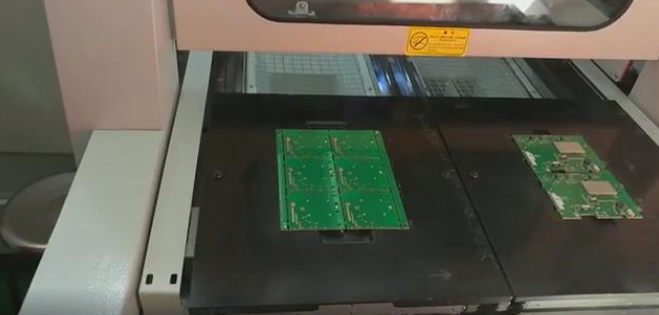

    PCBA CNC Routing Machine Display:


    PCBA CNC Routing Machine Includes:

    Vaccum cleaner x 1pc

    SycoTec spindle x 1pc

    Routing bit x 10pcs

    Instruction manual x 1pc

    Operation videos
