3-15 Ton Air Driven PLC Control FPC Die Tooling PCB Punching Machine

PCB Punching Machine Overview:

A PCB punching machine typically consists of a sturdy frame with a punching mechanism that applies pressure to the designated breaking points on a panel of PCBs. The machine is operated manually or automatically to separate the individual PCBs from the panel cleanly and efficiently.

PCB punching machines are used to separate individual PCBs from panels after the assembly process is complete.

Change Die Tooling Steps:

1. Loosen fixing screws for upper mold

2. Take out upper mold

3. Loosen fixing screws for lower mold

4. Take out lower mold

5. Install new lower mold by locking screws

6. Insall new upper mold by locking screws

7. Put PCB/FPC on lower mold

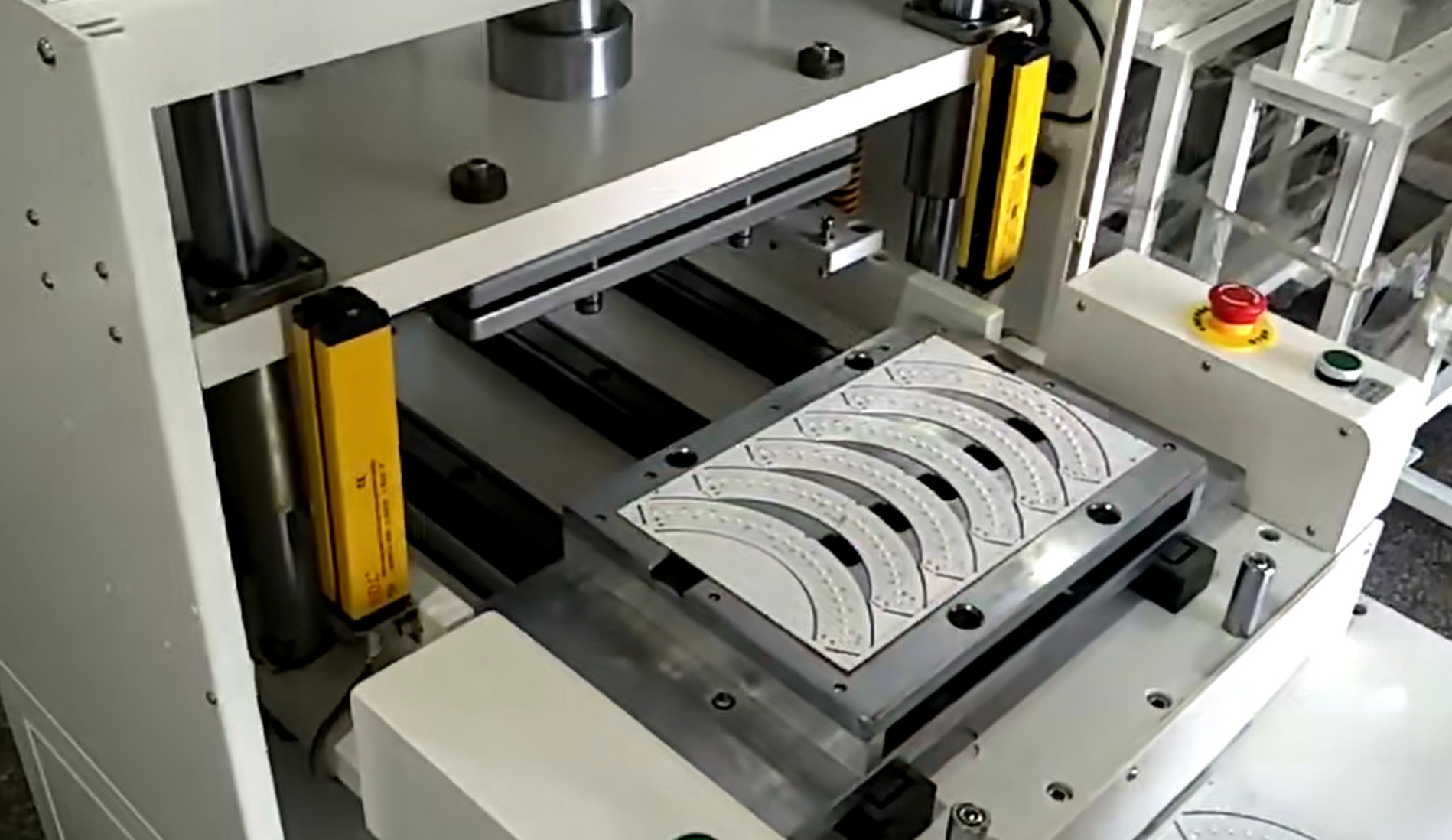

8. Press start buttons, lower mold slid into punching position for cutting

PCB Punching Machine Specification:

PCB Punching Machine Features:

1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual

2. Die toolings is changeable

3. Easy set up of punching dies

4. Loading and unloading PCBs is convenient

5. Easy operation, has safe protection system

6. Air cylinder driven

PCB Punching Machine Applications:

It is widely used in PCB assembly, prototype manufacturing, small batch production & custom PCB manufacturing..

PCB Punching Machine Advantages:

1. Precision Cutting: PCB punching machines offer precise cutting and punching capabilities, ensuring clean separation of PCBs without damaging circuit traces or components.

2. Efficiency: These machines increase production efficiency by automating the process of separating PCBs from panels, reducing manual labor.

3. Cost-Effective: PCB punching machines help reduce production costs by streamlining the PCB separation process and minimizing material waste.

4. Versatility: Suitable for various types of PCBs, including rigid, flexible, and rigid-flex boards, making them versatile tools in PCB manufacturing.

5. Minimized Tooling Costs: By using punching dies that are easily interchangeable, PCB punching machines help minimize tooling costs for different PCB designs.

6. Improved Workflow: These machines contribute to improved workflow in PCB manufacturing by speeding up the process of separating PCBs from panels.

PCB Punching Machine Delivery Terms:

1. Ex-work/FOB/CIF/DDU, up to clients

2. Production leadtime: 7-15 days to customized make die tooling and test it with the punching machine

Factory established in 2005, has built and maintained its reputation as a source of technical

and professional excellence.

Winsmart has a driven, experienced, and knowledgeable team, providing extensive array of solutions

for PCB depaneling and soldering. Above all, it takes pride in the quality and efficient service that it

provides to customers, which is reflected by long-standing relationships across a diverse customer base.

Winsmart will continue to meet customers' requirements by supplying the excellent solution with

unique technology and service!
