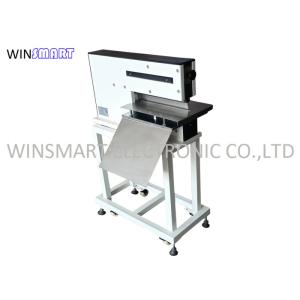

Pneumatic PCB Depanelizer Machine PCB Assembly Machine Air Driven

PCB Depanelizer Machine Overview:

It is widely used in modern PCB industry.

We offer the widest selection of depaneing machines for pre-scored and routed boards, including punching, routing, v-groove cutting

and laser cutting solutions.

PCB Depanelizer Machine Advantages:

1. Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.

2. Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.

3. Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.

4. Cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.

5. Blades can be re-sharpened

6. Cutting stress is less than 500 uE.

PCB Depanelizer Machine Specification:

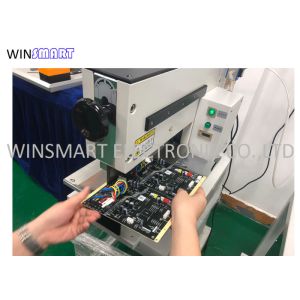

PCB Depanelizer Machine Details:

Shipping Ways:

1. DHL/FedEx/UPS/TNT Express

2. Air

3. Railway

4. Ocean

5. Truck

FAQ:

Q: What is life time of blade?

A: 100,000-300,000 cutting times, depends on PCB material.

Q: What is PCB Material available?

A: FR1, FR4, CEM, MCPCB.

Q: What is PCB thickness?

A: 0.4-3.5mm

Q: What is cutting speed?

A: It is adjustable, 0-400mm/s.

Factory established in 2005, has built and maintained its reputation as a source of technical

and professional excellence.

Winsmart has a driven, experienced, and knowledgeable team, providing extensive array of solutions

for PCB depaneling and soldering. Above all, it takes pride in the quality and efficient service that it

provides to customers, which is reflected by long-standing relationships across a diverse customer base.

Winsmart will continue to meet customers' requirements by supplying the excellent solution with

unique technology and service!
