360 Degree Rotatable Head SMT Machine PCB Point Soldering Machine
Robotic Soldering Machine Overview:
Soldering Robot provides the best solution for soldering job on
lead-free, heat dissipating PCB, and high thermal capacity
components. It is suitable for all sorts of difficult soldering
tasks and micro soldering process. It effectively improves the
soldering quality and consistency. Besides, it saves 30% of the
solder consumption comparing to manual soldering.
Robotic Soldering Machine Features:
1. Perfect soldering process setting, with spot welding and welding
function. Each instruction has independent preheating, tin length,
preheating time, welding time, tinning time, lifting height and
other solder parameters..
2. Perfect soldering process setting, with spot welding and drag
welding function. Each instruction has independent preheating,
solder wire length, preheating time, soldering time, tinning time,
lifting height and other solder parameters.
3. Independent dual soldering platform, one platform is working,
and the other platform can be clamped to provide significant
productivity.
4. The machine can be run offline or independently, and the welding
parameters are saved in the SD card to facilitate parameter copying
and saving between devices.
5. 2G storage space, can store several soldering programs, each
program supports 9999 soldering instructions.
6. There are two options for solder wire feeding, broken tin
function, no broken tin function.
7. The display adopts 320x240 high-resolution color screen, English
operation interface, easy to operate.
Robotic Soldering Machine Specifications:
| Model | SMTSR114 |
| Dimension | 680mm*500mm*720mm |
| Weight | 70Kg |
| Control | PLC |
| Programming | Teaching box |
| Driving mode | Stepper motor |
| Stroke | 300(X)x300(Y)x80(Z)x360°(R) |
| Soldering head | 1 |
| Repeatability | ±0.02mm(X/Y/Z) |
| Temp. Range | 0-500℃ |
| Solder Wire Spec | ￠0.3-1.6mm |
| Number of axes | 4 |
| Working pressure | 0.4~0.6Mpa(No water mist) |
| Power | AC110V/220V 300W |
| Display | LCD |
Robotic Soldering Machine Key Parts:

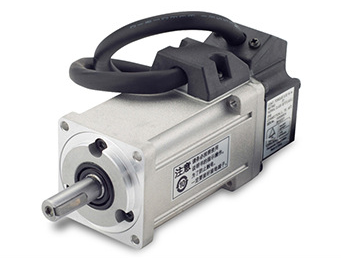

HIWIN Rail Panasonics Motor
Germany Heater TaiWan Power Supply
Robotic Soldering Machine Soldering Head:
Robotic Soldering Machine FAQ:
Q: What is soldering time?
A: About 2 seconds per point.
Q: What kind of soldering tips can you offer?
A: We could customize make suitable shape of soldering tip
according to your application.
Q: What kind of heater?
A: Weller brand.
Q: Is it possible to change parameters for only one soldering
point?
A: Yes, it is ok.
Q: How to improve soldering effect when trial soldering is not
good?
A: It can be improved by solder wire feeding and soldering time
adjustment.
