460x320mm 20Ton PCB Punch Machine Pneumatic Punching Machine
Pneumatic Punching Machine Features:
1. High degree of automation, simple and safe operation
2. Multiple molds can be replaced, and the mold replacement is
convenient and easy
3. The lower mold enters and exits automatically, which is
convenient for taking and placing products, and the finished
products can fall into the drawer.
4. Minimize the internal stress generated during plate cutting and
avoid tin cracking
5. The efficiency of punching semi-finished PCB and FPC is very
high
6. The latest new touch screen function is convenient for the
operator to operate.
Pneumatic Punching Machine Principle:
Install the PCB punching machine die tooling on the mold location,
put the FPC / PCB boards to be cut at the corresponding position of
the lower die, and press the start switch to cut the boards at one
time. During work, the lower die adopts automatic push-pull to
reduce labor intensity and improve safety. At the same time, it is
very convenient to take and place the separated boards.
Pneumatic Punching Machine Specifications:
| Working area | 460*320mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property | LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 680kgs |

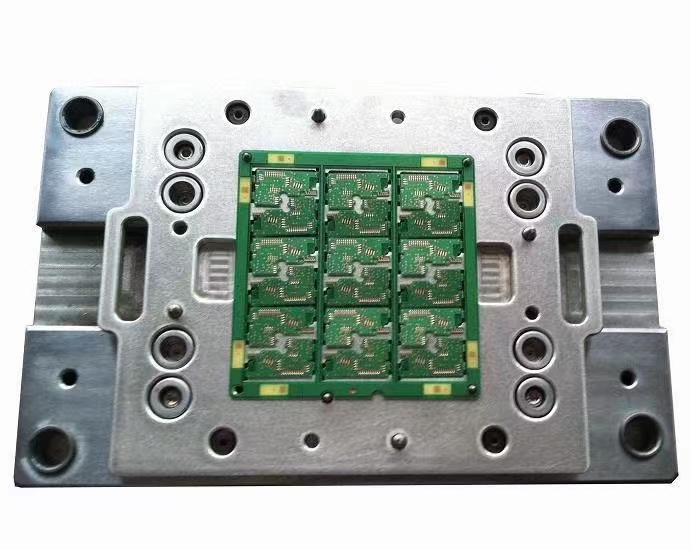

Pneumatic Punching Machine Die Tooling Photo:
Pneumatic Punching Machine Application Scope:
The circuit boards of mobile phones, digital cameras, electronic
accessories, computers, automobiles, etc. can be die-cut in batch,
and can give full play to the maximum effect when cutting multiple
circuit boards. In the electronic industry, such as mobile phone
board, memory card, mobile phone flexible circuit, HDI (high
density printed circuit board), FPCB flexible circuit board
(flexible circuit board) and FCCL (flexible copper clad laminate),
the efficiency is particularly significant for the segmentation of
large quantities of slotted PCB substrate and flexible circuit
board (FPC).
