Automatic LED PCB Separator Manual Feeding LED PCB Depanelizer Machine

LED PCB Depanelizer Machine Application:

This machine is working for both FR4 and Aluminum printed circuit board depaneling.

LED PCB Depanelizer Machine Specification:

LED PCB Depanelizer Machine Features:

Separates panels up to 0.1", and no limit on cutting length requirement, workable for 1500mm LED boards. It can separate PCBs safely with parts as clost as 0.02" to score line, and allows max 70mm height components mounted on the boards, and operator will not mis-feed the board to avoid mistakes. We accept customized made circular blades for special applications.

LED PCB Depanelizer Machine Operation Brief:

1. It should be noted that the LED PCB depanelizer machine is only used for depaneling, and the operator should wear anti-static gloves according to the relevant regulations of the company.
2. During operation, pay attention to hand ornaments, hair and loose clothes, and avoid approaching the upper and lower blades to avoid safety problems.
3. When cutting the board, you must select two directions before stepping on the pedal switch, otherwise the cutter wheel will not work In case of abnormality, quickly press the emergency switch and release the pedal switch to avoid accidents. This safety instruction is applicable to SMT workshop. In order to safely and reasonably use the LED PCB cutting machine. Organize designated personnel to carry out operation and maintenance.

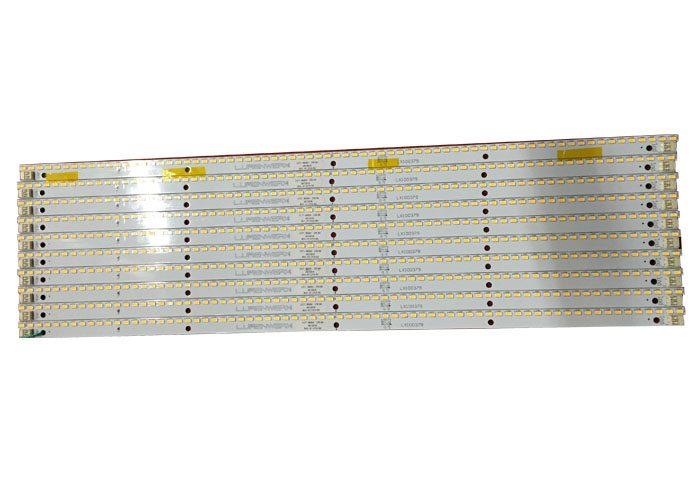

LED PCB Depanelizer Machine PCB Cases:

Factory established in 2005, has built and maintained its reputation as a source of technical

and professional excellence.

Winsmart has a driven, experienced, and knowledgeable team, providing extensive array of solutions

for PCB depaneling and soldering. Above all, it takes pride in the quality and efficient service that it

provides to customers, which is reflected by long-standing relationships across a diverse customer base.

Winsmart will continue to meet customers' requirements by supplying the excellent solution with

unique technology and service!
