    CCD Mobile Electronics PCB Router Machine Automatic PCBA Milling Cutter

    Ask Lasest Price
    Brand Name : Winsmart
    Model Number : SMTR09
    Certification : CE
    Price : USD1-100000
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 Sets/Month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    CCD Mobile Electronics PCB Router Machine Automatic PCBA Milling Cutter

    CCD Automatic PCBA Milling Cutter Cutting Machine Mobile Electronics PCB Router Machine


    PCBA Milling Cutter PCB Router Machine Description:

    A Depaneling router is a machine similar to wood router.

    It uses a router bit to mill the material of the PCB. The hardness of the PCB material wears down the bit, which must be replaced periodically.

    Routing requires that single boards are connected using tabs in a panel.

    The bit mills the whole material of the tab.

    It produces much dust that has to be vacuumed.

    It is important for the vacuum system to be ESD safe.

    Also the fixturing of the PCB must be tight - usually an aluminium jig or a vacuum holding system is used.


    PCBA Milling Cutter PCB Router Machine Features:

    This system has two-slide tables for high volume production. And it has lower stress to protect PCBA to ensure smooth cutting edge.

    Imported motor and spindle is used for noise free purpose.

    Optional top and bottom vacuum cleaning sytem is available for different clients' requirements.

    High quality CCD system to ensure precise cutting.

    Easy and simple programming, routing bits and cutting speed is adjustable.


    PCBA Milling Cutter PCB Router Machine Specifications:

    Overall
    Dimensions(W*D*H)1250mm*1650mm*1450mm
    Weight750KG
    Height offset60~110mm
    Manipulator
    Motor typeJiaBao series
    Positioning repeatability0.001mm
    Axis working area(max)650mm*560mm*50mm
    Work station
    PCB fixationstandard,specialization
    PCB loading/unloadingmanual
    PCB size (max)320*320mm
    PCB thick (max)5mm
    Fixturing
    Rigidity fixturingCustomized make fixture
    Fixturing fixationmachinery
    Spindle Motor
    Power150W
    Spindle60000rpm/min
    Protectself/wind cooling
    Change cutterSpecialization
    Routing capability
    Cutting speed(max.)80mm/s
    Driving speed(max.)2500mm/s
    Precision of cutting0.01mm
    Vacuum System
    Vacuum power3.5KW AC 380V
    Vacuumplumb
    Utilities
    Power2.0KW AC380V
    Air supply4-6KG/cm2
    Programming
    Program editInline
    Function editLine,arc,circula,U-curve
    Program storageHDD
    Vision systemSONE colour CCD
    milling cutter offsetAUTO
    Vacuum setupAUTO
    Operation Monitors
    IindicatorIindicator Machine state
    tool checkAutomatic detection tool life, the use of time testing
    Motor protectHave overheating, overload, low voltage protection function
    motor over loading checkHave Overload, the line is normal, low voltage protection function
    Tool usable timeAutomatic detection tool life,
    Data statisticSeparate board model, separating count, diverse counting methods
    Error recordSoftware automatically records all alarms memory of machines
    III. Accuracy
    Axis precision0.001mm
    Cutting precision0.1mm
    IV. Safety
    Working area protectWith four sealed protection
    Door sensorFront and rear safety door micro-switch sensor (optional)
    Exigency stop button

    PCBA Milling Cutter PCB Router Machine Applications:

    It is widely used in electronic industries manufacturing, such as mobile phone, automotive electronics, household electric appliances, mobile phone, LED lighting, medical industry, etc.

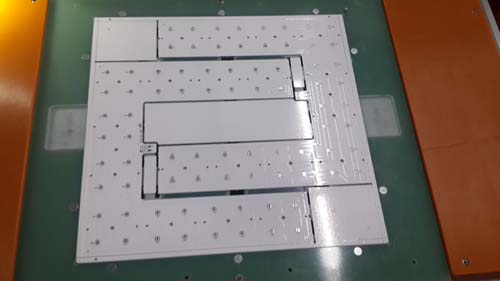

    PCBA milling cutter router machine
