400mm Blade Guillotine PCB Cutter V Cut Machine PCB Depaneling Hand Tool

Guillotine PCB Cutter Features:

1. Dual V shape blades for a perfect board cut without bending or tension.

2. Pneumatic footpedal control.

3. Small clearance between upper and lower blades to ensure safety operation.

4. The system only allow correct board placement to avoid mistakes.

5. Separate boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors

6. Compressed air as power, clean and low cost.

Guillotine PCB Cutter Specification:

Guillotine PCB Cutter Options:

Modified blades

Safety enclosure custom designed

Tray to safety catch boards after cutting

Guillotine PCB Cutter Parameters:

	D=0.6~1.5mm
	Emin=0.3mm
	Hmax=45mm
Max cutting length mm	400
Compressed Air MPa	0.4~0.6
Power VAC	220V/110V
Weight Kg	230

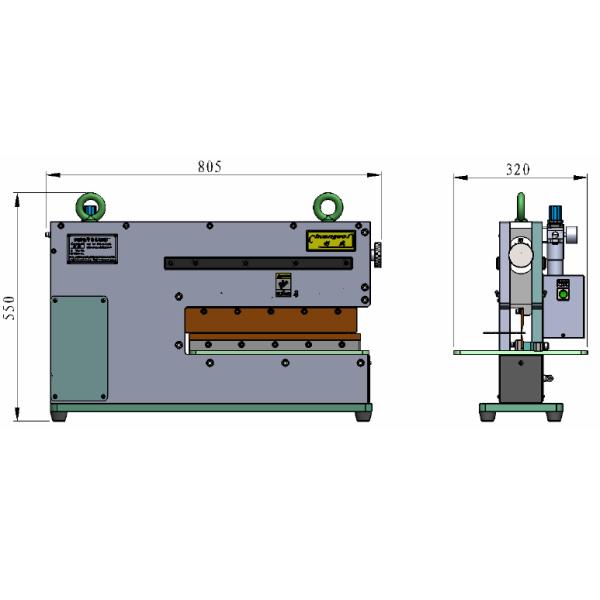

Guillotine PCB Cutter Dimension:
