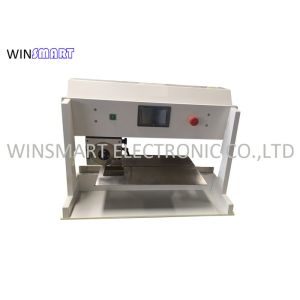

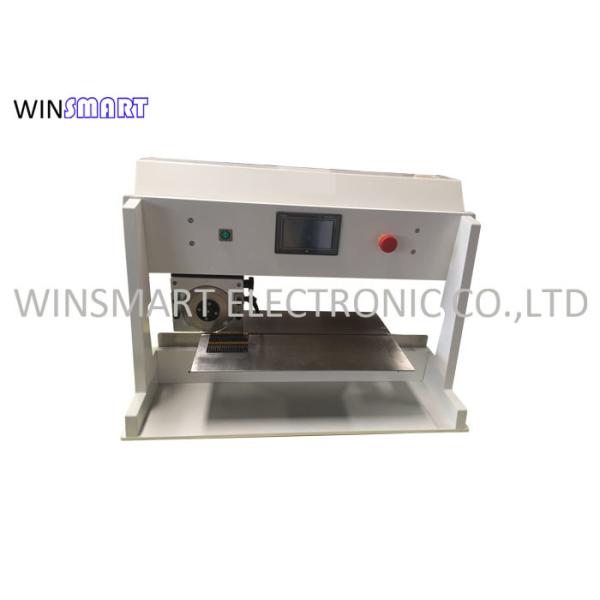

460mm Linear Blade Automatic V-Cut PCB Separator Machine PCB Cutter

Automatic V-Cut PCB Separator Machine Description:

This type of PCB Separator is using one circular blade and one linear blade, PCB boards will not move during cutting, components mounted on the boards is protected from damage.

Board thickness is reduced by boards being scored along the cut line on both sides. Both sides of the panel are scored to a depth of about 30% of the board’s thickness. PCBs are then broken out of the panel.

Automatic V-Cut PCB Separator Machine Features:

1. Controlled by Micro-Computer Program, patented design, high accuracy and with good stablity.

2. Cutting Speed adjustable, have two options : 500mm/s and 300mm/s, if customer want to set other speed, we can customise for customer.

3. Separation length can be programmed: 0-100-200-300-400MM

4. Cutting Material PCB must with Pre-scored groove,

When operating, put the PCB which is placed with its pre-scored groove onto the linear blade,when the foot swith is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.

5. Operating Panel height is adjustable, from 0-50mm.

6. Rotary Knife adjustable : 0-2mm . in order to suit for different sickness PCB board and different depth of pre-scored V-cut.

7. For operator safety, there are blade-halting light sensors and a Plexiglas safety shield.

8. PCB Board thickness : 0.2-3.2mm, V-cut depth : 0.2-2mm. PCB Length :0-1300mm.

9. Upper circular blade and Bottom linear balde all exported steel long life blade, durable, when the blade is not sharp, can grind 7-10 times, repeated use.

Automatic V-Cut PCB Separator Machine Parameters:

Automatic V-Cut PCB Separator Machine​ Specifications:

1. Voltage: 220/110V, 50/60Hz

2. Power: 250W

3. Upper Motorized Circular Blade : Diameter 125mm; blade angle : 26-28 °

4. Bottom Linear Blade length : 460mm, can cut max length of the PCB 430mm.

5. Seperation Length : 0-100-200-300-400mm

6. External Size: L740*W550*H460MM

7. Weight : 60kg

8. Package : Wooden Case

Automatic V-Cut PCB Separator Machine Maintenance:

Put rust prevention oil to blades when the machine is not used

After working 100km(about 50 days),needs to put lubricating oil to the eye of the slider.

Use Mobil Grease MP or lubricating oil.

Automatic V-Cut PCB Separator Machine Application:

1. Cutting Materials: Aluminum Board, PCB Board, Soft Fiber, clean and burr-free, high speed and effective.

2. Customer mainly from Electronics Assembly Industry like LED industry, SMT industry, Moblie/Mp3 industry, Electronic Toys industry and Etc...

3. Imported high speed steel blade, long service life. Easy operating, processing without board stress, will not demage the components on the board.

Factory established in 2005, has built and maintained its reputation as a source of technical

and professional excellence.

Winsmart has a driven, experienced, and knowledgeable team, providing extensive array of solutions

for PCB depaneling and soldering. Above all, it takes pride in the quality and efficient service that it

provides to customers, which is reflected by long-standing relationships across a diverse customer base.

Winsmart will continue to meet customers' requirements by supplying the excellent solution with

unique technology and service!
