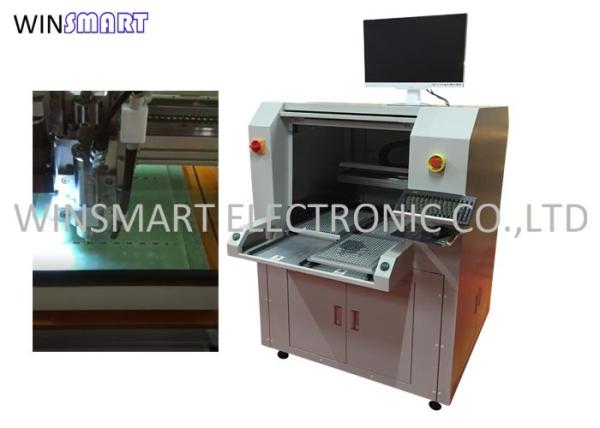

    Semi Auto 60000rpm Spindle PCB Router Machine with 3HP Vacuum Cleaner

    Ask Lasest Price
    Brand Name : Winsmart
    Model Number : SMTR05
    Certification : CE
    Price : USD20000-80000
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 Sets/Month
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    Semi Auto 60000rpm Spindle PCB Router Machine with 3HP Vacuum Cleaner

    Semi Auto 60000rpm Spindle PCB Router Machine with 3HP Vacuum Cleaner


    Semi-auto Spindle PCB Router Introduction:

    When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. In China we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 4 different depth levels, which will cut down on bit replacement. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process.


    Semi-auto Spindle PCB Router Features:

    1. Two-slide PCB Separator

    2. Low stress

    3. Sharp cutting edge

    4. Manul loading /unloading

    5. High speed cutting by 4 axes control(XY moving at the same time)

    6. Easy teaching with image processing


    Semi-auto Spindle PCB Router Specifications:

    Router MachineSMTR05
    X/Y Cutting Speed0 ~100mm/s
    Repeatability precision± 0.01mm
    X/Y1/Y2/Z control modeIndustrial IPC and PC
    X/Y1/Y2/Z driven modeAC Servo Motor
    Operation and data storagePC
    Cutting Precision± 0.05mm
    Spindle Speed60000rpm(Germany KKAVO)
    Power Supply220V/110V
    Air Pressure4.5kg/cm 2
    Power Rate1.8KW
    Vacuum Cleaner
    ModeUp or Bottom
    Power Supply380V
    Up Cleaner DimensionL650*W400*H1350mm
    Bottom Cleaner DimensionL665*W635*H1650mm

    Semi-auto Spindle PCB Router Advantages:

    Firsly, it has the advantage of long tool life. After cutting a certain distance, the milling cutter will automatically rise / fall to another uncut blade position according to the setting. The up-down distance and times can be set freely according to the blade length to prolong the service life of the milling cutter. In addition, there is a power-off memory function. In normal use, in case of sudden power failure, the automatic PCB depaneling router machine system will notify the processing steps in case of power failure. Also, it can replace manual crushing, V-cut cutting, push cutting and other cutting defects, improve product quality and reduce scrap rate. Finally, the program can be set and entered manually. It has the functions of import and export, board connection copy, path copy, editing and modification, etc. It can simplify program making and save time.

    PCB Router Machine


    Our Service:

    1. Lifetime technical support and 2 years warranty.
    2. Free replacement or refund would be done in case of any quality problem.
    3. Fast response/feedback within 12 hours
    4. Engineers are available to be sent to do oversea installation and training.
    5. Solid packaging to prevent damage from transportation.
