3HP Vacuum Cleaning System CNC PCB Router Machine From Top Cutting
CNC PCB Router Machine Overview:
CNC PCB router machine is a professional machine equipment used for
PCB cutting processing from the top. It adopts computer numerical
control technology, which can efficiently and accurately cut PCB
boards and ensure the best processing quality. This machine is an
essential tool in the electronic manufacturing industry and can be
widely used in the production and assembly process of electronic
products.
CNC PCB Router Machine Features:
1. High precision cutting: Adopting advanced CNC technology to
ensure high precision and stability of the cutting process,
reducing human error, and improving cutting quality.
2. Fast and efficient: The equipment has a high-speed cutting
function, which can quickly complete the PCB board splitting work
and improve production efficiency.
3. Flexibility: The machine has multiple cutting modes and
parameter settings, which can be flexibly adjusted according to
different PCB designs and requirements to meet different processing
needs.
4. Friendly operation interface: The device is equipped with an
intuitive and easy-to-use operation interface, which is easy to
operate and convenient for workers to quickly get started.
5. Safety: The machine adopts safety protection measures, such as
protective covers and emergency stop buttons, to ensure the safety
of operators.
CNC PCB Router Machine Specification:
| I. Hardware | |
| SPINDLE | Morning Star spindle (optional) |
| CCD | Sony 520 line industrial cameras |
| LENS | Computar EX2C |
| Screw | TBI Precision ground ball screw imports |
| Guide | HIWIN widening Imported linear guide rail |
| MOTOR | JiaBao LCF Series |
| I/O CONTRONL CARD | HFC PCI-9074 |
| DRIVER CONTRONL CARD | HFC PCI-9074 |
| I/O CARD | PCI-9074-64pcs/-38pcs |
| Static cleanup | STATIC-ST401A Series |
| Computer | (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G) |
| Machine interface | AOC LCD17",Logitech mouse |
| 2. software | |
| Control system | Windows XP Professional (Service3,v.3244) |
| Operation GUI | English Windows XP |
| Program edit | Inline |
| Vision system | CCD AOTU offset |
| Control system | F 1.2.88 version |
CNC PCB Milling Machine Parameters:
| Overall | |
| Dimensions(W*D*H) | 1220mm*1380mm*1240mm |
| Weight | 450KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 650mm*560mm*50mm |
| Work station | |
| PCB fixation | standard, specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 280*320mm |
| PCB thick (max) | 3.5mm |
| Fixturing | |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 150W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 80mm/s |
| Driving speed(max.) | 2500mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 4-6KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
| Exigency stop button | |
CNC PCB Milling Machine Advantages:
1. It has the advantage of long tool life. After cutting a certain
distance, the milling cutter will automatically rise / fall to
another uncut blade position according to the setting. The up-down
distance and times can be set freely according to the blade length
to prolong the service life of the milling cutter.
2. In addition, there is a power-off memory function. In normal
use, in case of sudden power failure, the automatic PCB depaneling
router machine system will notify the processing steps in case of
power failure.
3. The PCB router has more humanized functions such as Win XP
Chinese and English operating system, production information
statistics and management, automatic marking, positioning and
correction system, moving path display and tracking, automatic
focusing and correction function, higher cutting accuracy and so
on. It is more convenient to copy left and right programs, high
pixel color CCD magnifying glass, auxiliary program teaching and
editing simulation function, and more accurate, Clearer image
4. It can replace manual crushing, V-cut cutting, push cutting and
other cutting defects, improve product quality and reduce scrap
rate.
5. The transparent safety door design makes the processing process
clear at a glance, opens and closes to prevent processing
accidents, and provides users with a safe operating environment.

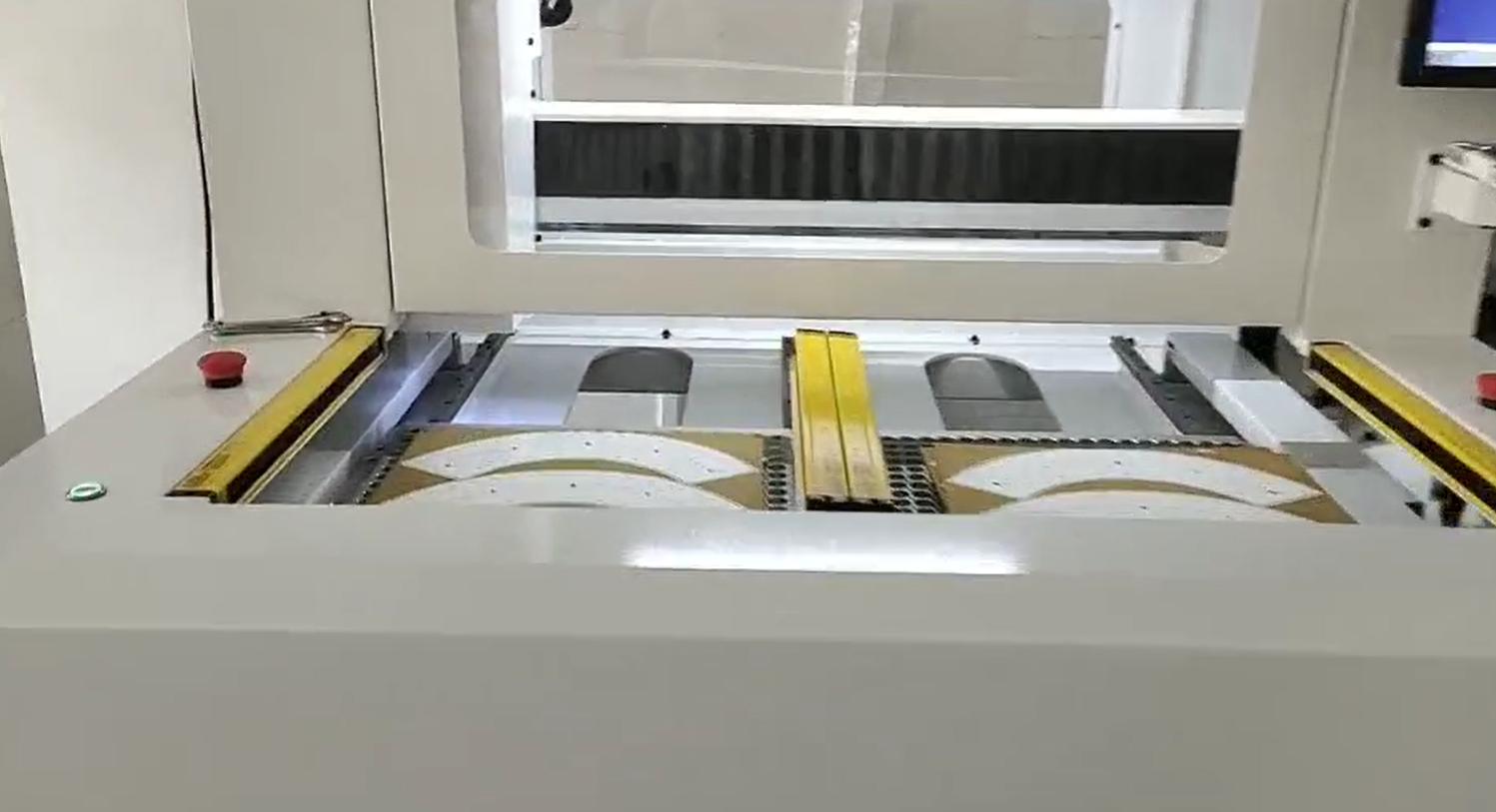

6. The two platforms can be processed interchangeably, and PCB
boards can be placed alternately to reduce waiting time and improve
production capacity.
7. Powerful dust collection system and electrostatic eliminator can
clean and solve the problem of cutting dust. Imported fan makes
dust cleaner and noise less.
8. The program can be set and entered manually. It has the
functions of import and export, board connection copy, path copy,
editing and modification, etc. It can simplify program making and
save time.
