High Precision SMD Glue Dispensing Machine With Rotable Dispensing
Head
SMD Glue Dispensing Machine Introduction:
Although in the meantime, components are no longer glued in the
production of SMTs where possible, in order to alleviate subsequent
repair work, for example, there still are applications where
components are glued.
Especially with heavy structural shapes such as power components or
plugs, gluing ensures the mechanical stability of the circuit. In
addition, mechanical powers can be dissipated better even in
smaller components, for example portable circuits in consumer
electronics or control electronics in the automotive field.
Various different dispenser valves can be used depending on the
application for accurate processes and excellent results.
SMD Glue Dispensing Machine Features:
The machine adopts visual positioning and following technology,
without fixture, and the assembly line does not stop working. And
the working mode of on-line dispensing combines product dispensing
and handling procedures, and can be adapted to a variety of
production lines. The new embedded model can be placed and used
with the solid line, and the layout is flexible to meet the needs
of flexible production. This glue dispensing machine can be adapted
to various dispensing valves and glue supply systems. Windows 10 OS
and friendly software for easy operation and programming.
SMD Glue Dispensing Machine Specification:
| Model | SMTID350 |
| Working Stroke | 410x350x100mm |
| Moving Speed | 500 mm/sec |
| Conveyor Belt Speed | 200 mm/sec |
| Driven Mode | (Stepping + belt) or (servo + screw rod) |
| Program Mode | Visual CCD System |
| Repeatable Precision | ±0.02mm |
| Feeding Mode | Auto |
| Unloading Mode | Auto |
| OS | Windows 10 |
| Valve Quantity | 1 |
| Warranty | 1 year |

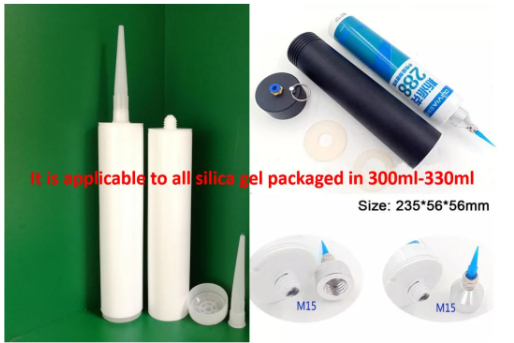

| Glue Packaging | Up to client's requirement |
| Transport height | 900±20mm |
| Transport direction | L→R(R→L Optional) |
| Driven Type | Pneumatic |
| Precision | High |
| Certification | CE |
| Condition | New |
| Nozzle | Optional |
| Air Pressure | 0.7MPa |
| Power | 220V, 1100W |
| Dimension (W*D*H) | 1400x500x1730mm |
| Weight | 280kgs |
Automatic Glue Dispenser Applications:
Suitable for glue: Anaerobics, Coatings, Cyanoacrylates, White
Glues, Epoxy Resin, Greases, Sealants, Silicones, Solder/Braze
Pastes, Thermal Grease, Conductive Adhesive, Red Gum, UV Glue, AB
Glue, Polyurethane Resin Adhesive, etc.
This equipment is suitable for high efficiency, high running
precision and production process of dispensing. Generally suitable
for products with sensors, relays, power adapters, electronic toys,
sounders, electronic components, household
appliances, electric vehicle controllers, computer digital
products, crafts, mobile phone boards, coil products, button
products,battery boxes, speakers Dot glue bonding; speaker
packaging and dispensing, optical semiconductor, mobile phone
battery, laptop battery packaging, PCB board bonding, COB, IC, PDA,
LCD sealing, IC packaging, IC bonding, chassis bonding, Optical
device processing, hardware parts package coating, quantitative
liquid filling, chip bonding, automotive mechanical parts
coating,mechanical seals, etc.
Automatic Glue Dispenser Dispensing Material:
Silicone, epoxy resin, UV adhesive, conductive adhesive, AB
adhesive, heat dissipation adhesive, etc
Automatic Glue Dispenser Package:
Each unit be packed in a plywood case with vacuum bag.
