SMT Glue Dispensing Systems 0.6MPa Filling Station Single Table
Available Dispensing Materials:
UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive
glue, SILICON, epoxy resin, instant glue, silver glue, red glue,
solder paste, thermal grease, solder paste, transparent paint,
screw glue, etc.
SMT Glue Dispensing System Features:
1. Teach pendant for easier programming
2. Supporting array,graphic browsing,3D arc,common graphic library
inserting and group editing
3. Mini SD file memorizer high speed and 2G capacity
4. Automatic gel prevention to prevent glue curing to jam nozzle.
5. High-strength equipment frame, x, y, z axis vertical more
precision.
6. Desktop design for easy to install and operate.
7. Optional positioning PIN, glue guns, baseboard heating
temperature controlling device is available.
8. Drawing point, line, surface, arc, circle, irregular curve
continuous dispensing path is available.
SMT Glue Dispensing System Specification:
| Model | SMTDR311 |
| Working Area | 300(X)x300(Y)x100(Z)mm |
| Moving Speed | 0-500mm/second |
| Max load Y/Z | 10/5KGS |
| XYZ Repeatability | ±0.02mm |
| Machine Dimension | 600x530x800mm |
| Driven Mode | Stepping motor+ belt+ precise linear guide rail |
| Program capacity | 999 parameter files(65535 points can be saved per file) |
| Operation system | Teaching box |
| Movement pattern | Point to point in XYZ axis, Continuous line, arc |
| I/O ports for extension | 4 inputs/4 outputs |
| Work condition | Temperature 0-40°C;humidity 20-95% |
| Dispensing head | 1 |
| Working table | 1 |
| Valve | Up to dispensing material |
| Warranty | 12 months |
| After-sale serive | 24hours online, on-site installation is available |
| Dispensing material | UV, AB glue, EPOXY, white glue, EMI conductive glue, SILICON, epoxy
resin, solder paste, etc. |
| Weight | 46kgs |
| Power consumption | 1KW/H |
SMT Glue Dispensing System Application:
1. Electrical Products: Electronic parts, integrated circuits,
circuit board solder paste, fixed and dust and moisture protection,
LCD liquid crystal screen, speakers, headphone, audio, LED, optical
lens, SMD transformers, relays.
2. Communication Products: Keypad, mobile phone casing bonding,
radio, telephone, Computers, MP4, electronic toys, chassis bonding,
switches, connectors, plug cable.

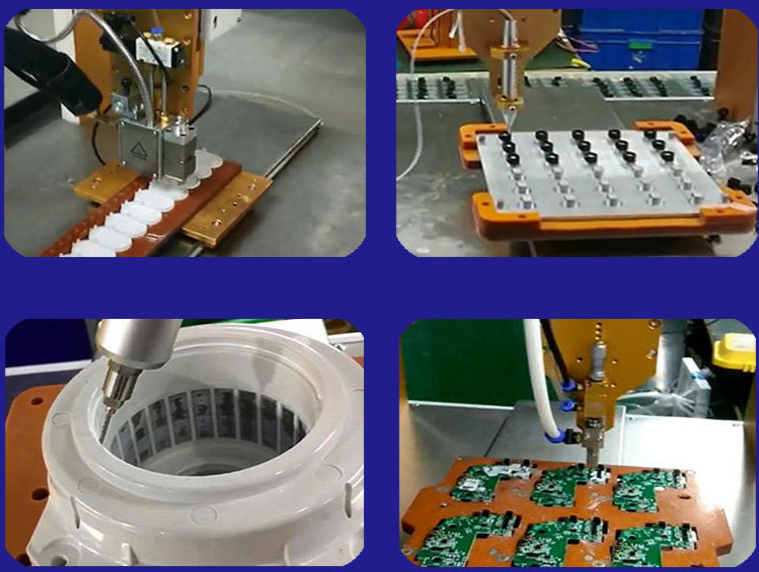

SMT Glue Dispensing System Photo:
