PLC Control Automatic Solder Paste Dispenser Machine Epoxy Glue
Dispenser
Automatic Solder Paste Dispenser Advantages:
1. Teach pendant for easier programming
2. Supporting array,graphic browsing,3D arc,common graphic library
inserting and group editing
3. Mini SD file memorizer high speed and 2G capacity
4. Automatic gel prevention to prevent glue curing to jam nozzle.
Available Dispensing Materials:
UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive
glue, SILICON, epoxy resin, instant glue, silver glue, red glue,
solder paste, thermal grease, solder paste, transparent paint,
screw glue, etc.
Automatic Solder Paste Dispenser Application:
1. Electrical Products: Electronic parts, integrated circuits,
circuit board solder paste, fixed and dust and moisture protection,
LCD liquid crystal screen, speakers, headphone, audio, LED, optical
lens, SMD transformers, relays.
2. Communication Products: Keypad, mobile phone casing bonding,
radio, telephone, Computers, MP4, electronic toys, chassis bonding,
switches, connectors, plug cable.
Automatic Solder Paste Dispenser Characteristic:
◆ Major functions: Drawing point, line, surface, arc, circle,
irregular curve continuous complement and triaxial linkage.
◆ Equipped with pro. software that has area display, translation
rotating operation functions.
◆ Be able to set size of gluing area, speed of gluing, dispensing
time, stopping glue time. Stable glue exudation without glue
leaking and dripping.
◆ According to the production process, work platform can be
installed with positioning PIN, glue guns, baseboard heating
temperature controlling device.
◆ High-strength equipment frame, x, y, z axis vertical more
precision
◆Stand-alone operation, most easy to install
Automatic Solder Paste Dispenser Specification:
| Model | SMTDR311 |
| Working Area | 300(X)x300(Y)x100(Z)mm |
| Moving Speed | 0-500mm/second |
| Max load Y/Z | 10/5KGS |
| XYZ Repeatability | ±0.02mm |
| Machine Dimension | 600x530x800mm |
| Driven Mode | Stepping motor+ belt+ precise linear guide rail |
| Program capacity | 999 parameter files(65535 points can be saved per file) |
| Operation system | LCD panel /handhold programming device |
| Movement pattern | Point to point in XYZ axis, Continuous line, arc |
| I/O ports for extension | 4 inputs/4 outputs |
| Work condition | Temperature 0-40°C;humidity 20-95% |
| Weight | 46kgs |
| Power consumption | 1KW/H |

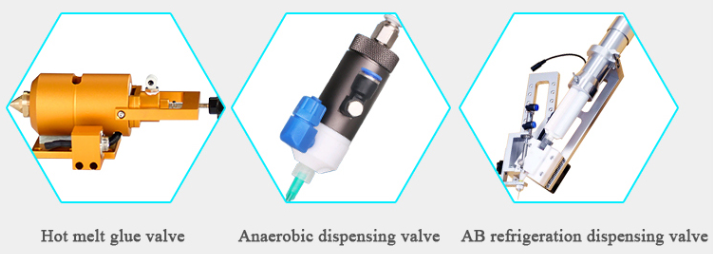

Optional Valves For Different Applications:
After-Sales Service:
1. From the purchase date, one year free warranty, lifelong
maintenance.
2. Provide technical update and technical service at any time.
3. Software system life - long free upgrade, to ensure the latest
version of the software and perfect functions.
4. Provide technical training according to customer needs.
5. Make phone calls and on-site visits to customers from time to
time, communicate with customers and improve related problems in a
timely manner.
6. Provide door-to-door service, one-on-one designated service
policy.
7. We are online for 24-hours, and give response to clients within
4 hours.
