CCD System Full Automatic SMT Dispensing Machine With 350*400mm
Working Area
SMT Dispensing Machine Application:
SMT, smart wear, precision instruments, tablet computers,
automotive electronics, military products, aerospace,
semiconductors, medical devices, communications, etc.
SMT Dispensing Machine Features:
1. The machine adopts visual positioning and following technology,
without fixture, and the assembly line does not stop working.
2. The working mode of on-line dispensing combines product
dispensing and handling procedures, and can be adapted to a variety
of production lines
3. The layout mode of the new embedded model can be placed and used
with the solid line, and the layout is flexible to meet the needs
of flexible production.
4. It can be adapted to various dispensing valves and glue supply
systems, which is simple to operate, easy to learn and easy to use.
5. Windows 10 operation system. Auto alarm and menu display
function.
6. CCD visual position system.
7. Different types of nozzle are optional according to your glue
type.
8. Standard SMEMA interface.
SMT Dispensing Machine Applicable Glue:
Silicone, epoxy resin, UV adhesive, conductive adhesive, AB
adhesive, heat dissipation adhesive, etc
SMT Dispensing Machine Specification:
| Model | SMTID350 |
| Working Stroke | 410x350x100mm |
| Moving Speed | 500 mm/sec |
| Conveyor Belt Speed | 200 mm/sec |
| Driven Mode | (Stepping + belt) or (servo + screw rod) |
| Program Mode | Visual CCD System |
| Repeatable Precision | ±0.02mm |
| Feeding Mode | Auto |
| Unloading Mode | Auto |
| OS | Windows 10 |
| Valve Quantity | 1 |
| Nozzle | Optional |
| Air Pressure | 0.7MPa |
| Power | 220V, 1100W |
| Dimension (W*D*H) | 1400x500x1730mm |
| Weight | 280kgs |
SMT Dispensing Machine Details:
1. High quality valve, could be dis-assembled for cleaning.

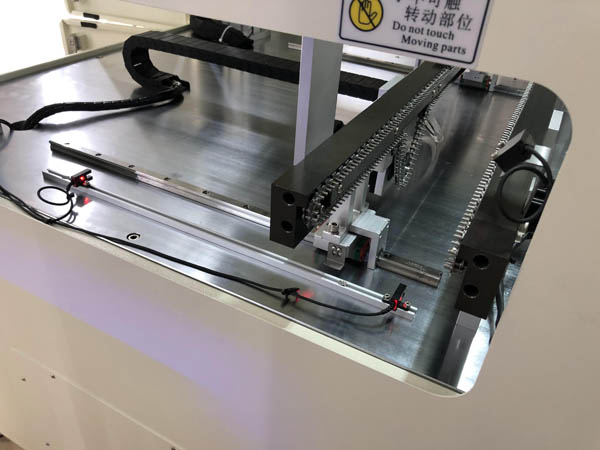

2. Automatic feeding: adjustable rail track for different width PCB
boards.
3. Automatic unloading for next processing.

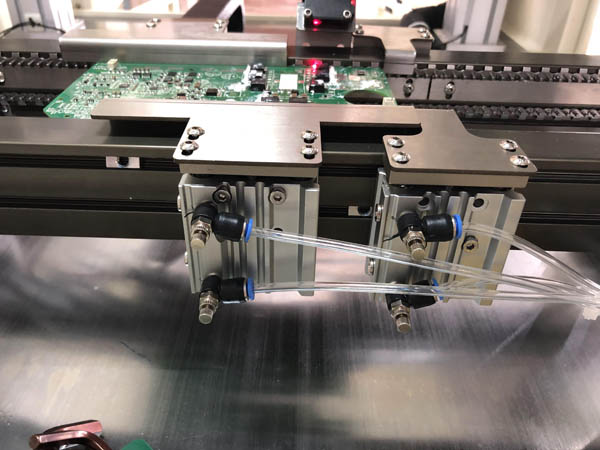

4. Ajustable fixing plate for better dispensing effect.
SMT Dispensing Machine Case:
